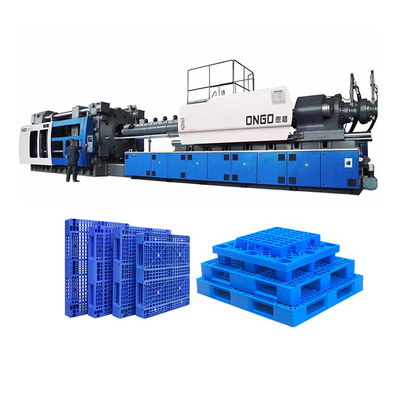

ONGO Horizontal 2800 Ton Injection Plastic Pallets Making Machine Molding Machine Plastic Molding Machine

1.0 Sets
MOQ
ONGO Horizontal 2800 Ton Injection Plastic Pallets Making Machine Molding Machine Plastic Molding Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Plastic Processed: PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP
Condition: New
Style: Horizontal
Distance between Tie Bars(Width)(mm): 1900mm
Distance between Tie Bars(Height)(mm): 1900mm
Mold Height(mm): 1000 - 19000 mm
Ejector Stroke(mm): 450 mm
Ejector Force(kN): 430 kN
Theoretical Shot Volume(cm³): 43530 cm³
Injection Rate (g/s): 2121 g/s
Machine Type: Hydraulic
Injection Weight (g): 39612 g
Screw diameter (mm): 215 mm
Distance between Tie Bars: 1900*1750mm
Weight (KG): 207000
Type: Tube Shoulder Injection
Place of Origin: Zhejiang, China
Open Stroke(mm): 2000 mm
Model Number: Z2800
Merknaam: ONGO
Power (kW): 407.9 kW
Warranty: 2 years
Key Selling Points: Multifunctional
Applicable Industries: Injection Molding Machine
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Other
Screw Speed: 60 Rpm
Machine Dimension(L*W*H): 19.9*3.92*5.2M
Max .mould height: 1900
Min. mould height: 1000
Used for: Plasic Products
Application: Inserting Plastic Products
Plastic Type: Thermoplastic
Automatic: Yes
Clamping Force (kN): 28000 kN
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Online support
After Warranty Service: Field maintenance and repair service
Local Service Location: None
Certificering: ISO
Basis informatie
Place of Origin: Zhejiang, China
Merknaam: ONGO
Certificering: ISO
Model Number: Z2800
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Accept any packaging
Supply Ability: 200 Set/Sets per Month
Productomschrijving
Product Paramenters
ITEM
Unit
Z2800
INJECTIONUNIT
A
B
C
Screw Diameter
mm
170
200
215
Shot Volume(Theoretical)
cm^3
19293
35154
43530
Injection Weight(Ps)
g
17557
31990
39612
Injection Rate
g/s
1779
2095
2121
Injection Pressure
MPa
161
137
135
Screw Speed
rpm
60
50
45
CLAMPING UNIT
Clamping Force
kN
28000
Open Stroke
mm
2000
Space Between Tie Bars(W*H)
mm
1900*1750
Max Mould Height
mm
1900
Min Mould Height
mm
1000
Ejector Stroke
mm
450
Ejector Force
kN
430
OTHERS

Max.Pump Pressure
MPa
16
Pump Motor Power(Servo)
Kw
55+55+55+55
Heating Power
Kw
171.7
171.7
187.9
Machine Dimension(L*W*H)
M
18.9*3.92*5.2
18.9*3.92*5.2
19.3*3.92*5.2
Oiltank Cubage
L
4420
Machine Weight
T
190
195
207
Products Description
ONGO 110 TON- 2900 TON plastic injection molding machine
We can customize thin wall injection molding machines for customers according to the characteristics of each customer, and provide overall solutions，We can solve the problem for you at different injection molding industry
Our products can produce any parts, if you have any questions, please click to contact us
1.INJECTION PREPLASTICATION SEAT WITH OIL COPPER SLEEVE
The preplastication seat reciprocates once in every injection motion. Normal non-automatic lubrication in injection unit can't offer lubrication support to this important motion. Thus, we use oil copper sleeve to make sure that injection reciprocates well.Even without lubricating oil support, it can also slide excellently.Considering cost, however, some materials without oil always cause harmful effect to injection accuracy after a period of time
2.CLOSED BASE STRUCTURE
Compared with opened structure, the closed base structure is neater and protects components better to avoid any damage by crash. It also improves operation safety Automatic mould adjustment device is convenient for customer operation.
3.SEALED STRUCTURE WITH CONE SURFACE
In line with famous international brands, sealed structure with cone surface in connection position of high pressure oil pipe improves sealing reliability greatly
4.SPRAY PLASTIC IN OIL TANK
Spray plastic in oil tank makes it clean, and what's more, it prevents oil tank to be corroded for long time, extends hydraulic oil service time effectively, and decreases customer's use-cost
Under the control of ISO 9001 management system, from material selection to processing, production and assembling, each step is inspected strictly.In order to reach 100% eligible rate, the machine shall be given more than 72 h-continuous test in performance reliability.
Our services
1.BEFORE SERVICE PURPOSE
Considering reasonable, standard and saving cost scheme for customers, we offer all-around service and technical support to help them choose correct machine
2.SALES SERVICE
We will provide customer instructions on water arc elasticity connection of the machine, free new machine commissioning, technical training and machine operation Training.
3.AFTER-SALES SERVICE
Technical support and product maintenance We offer subsequent training and technical consultation, can even send service engineer to solve the problem at the customer s factory. After upgrading our product, we will give priority to update the sold machines according to customer' s requirement
Company Profile
FAQ
Q1. What's our minimum order quantity ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
Q2. What detailed information do we need if you want to order our product ?
Product pictures with measurements or drawings, sample best, product weight, material, cavities
Q3: Could you send your engineer to my country, to start the machine?
Surely, we have experience technical engineer for oversea service, they would help you install machine, training your workers.
Q4. Are we a factory or trading company?
We are a real factory in Ningbo and we are one of the leader of high-speed injection molding
machine in China.
Q5. Can we print client's logo?
We can customize thin wall injection molding machines for customers according. to the characteristics
of each customer, and provide overall solutions.
Q6. How can you more info about injection molding machine production processes?
We have a factory product food containers inside of ONGO factory. Here you can find out how
ONGO machine product and how food containers are produced.
Q7.What quote do you offer?
EXW/FOB / CIF and others ways according to your needs. When the quality is same, our price can be
more competitive.
